All ZinAmp modules can be purchased for use in your own project. Whether you require a regulated power supply, power-amplifier or speaker protection, our extensive range of modules can augment your existing project. Built using high-quality components that are easy to source. Modules available fully assembled or as bare PBCs with parts list Sort by: Project | Module Type |
|||

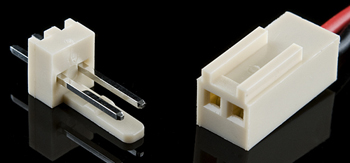

Wiring set comprising the connectors, screened cables and sockets for RCA audio inputs and outputs. Made with Molex KK 254 shrouded connectors and gold-plated RCA sockets, these take external phono and line-level signals from input sources and route them to the selector switch. Also includes the line-out and pre-amp-out connections. Molex PCB headers are included to be soldered onto the appropriate PCBs by the constructor before assembly. For use in ZinAmp PreAmps and Integrated Amps
|
|||
Wiring set comprising the connectors, screened cables and sockets that connect the selector switch and volume controls to the pre-amp and phono-amp. Made with Molex KK 254 shrouded connectors, this set includes the Molex PCB headers to be soldered onto the appropriate PCBs by the constructor before assembly. For use in ZinAmp PreAmps and Integrated Amps
|
|||
Wiring set comprising the connectors, cables and sockets required to power pre-amp and phono-amp. Made with Molex KK 254 shrouded connectors, this set includes the Molex PCB headers to be soldered onto the appropriate PCBs by the constructor before assembly. For use in ZinAmp PreAmps and Integrated Amps
|
|||
Wiring set comprising the connectors, cables, sockets and panel-LEDs required to control the start-up timer, mute and auto-power-off features of ZinAmp valve amps. Made with Molex KK 254 shrouded connectors, this set includes the Molex PCB headers to be soldered onto the appropriate PCBs by the constructor before assembly. For use in ZinAmp valve PreAmps and valve Integrated Amps
|
|||
Wiring set comprising the connectors, cables and sockets required to connect the power amps to their power supplies and connect the audio output via the speaker protector, phones adaptor and speaker switches. Made with Molex KK 254 shrouded connectors, this set includes the Molex PCB headers to be soldered onto the appropriate PCBs by the constructor before assembly. For use in ZinAmp Integrated, Power and Bi Amps. BiAmp requires two of these sets
|
|||
100mm x 30mm x 3mm aluminium plate with pre-drilled countersunk holes. Simplifies the job of mounting ZinAmp power amp modules in your own custom enclosure as it requires only two holes to be drilled and tapped into your heatsink, 90mm apart. Recommended tapped hole size, M4
|
|||
100mm x 30mm x 3mm aluminium plate with pre-drilled countersunk holes. Simplifies the job of mounting ZinAmp valve power supply modules in your own custom enclosure as it requires only two holes to be drilled and tapped into your heatsink, 90mm apart. Recommended tapped hole size, M4
|
|||
100mm x 30mm x 3mm aluminium plate with pre-drilled countersunk holes. Simplifies the job of mounting ZinAmp power supplies in your own custom enclosure. Recommended for Power Amp supplies and Solid State Pre & Phono Amp supplies. It requires only two holes to be drilled and tapped into your heatsink, 90mm apart. Hole size M4
|
